Specification:

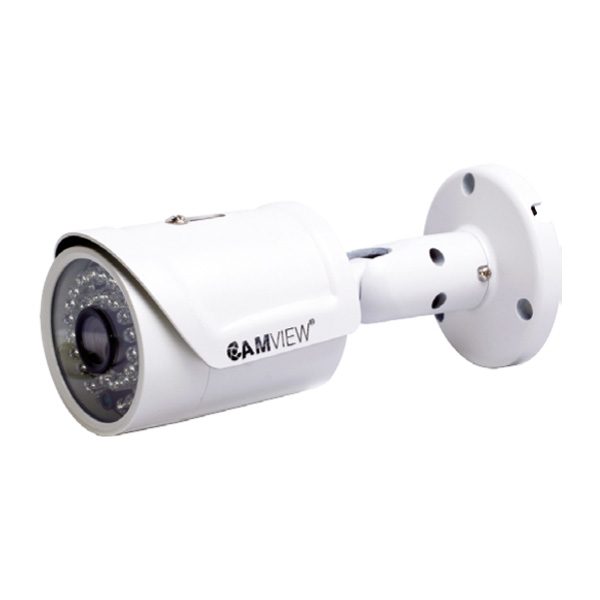

| Model No. | CV-NHG53M |
| System structure | HI3518E(Hisilicon) |
| Sensor | 1/3″ CMOS Sensor AR0130 |
| Video Processing | H.264 video coding,dual-stream, AVI form; 0.1M-6Mpbs adjustable; 1-30fps adjustable; |
| Image Output | Main Stream: 1920*1080,1280*720; Sub Stream:704*576 |
| Network Interface | 1pcs RJ45(10/100M Adaptive); RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP supported; |
| Lens | Fixed 4/6/8/12mm Lens(3.0M) |
| ICR | Auto Color to B/W; ICR |
| IR LED | IR LED: 5x36pcs, Max-IR distance: 30M |
| Functions | WEB setting, OSD, Real-time browsing, Motion detection and IO alarm action(front-end storage), Front-end storage playback/ download, IO alarm action(center warning and image popup), MJPEG Screenshot,Remote view(client software, Xmeye platform), Complete SDK offered |
| P2P | Supported |
| ONVIF Protocol | Supported |
| Mobile surveillance | Support( iPhone, Android) |
| Operating Temp | -10℃ – +55℃ |
| Operating Humidity | 0% – 90% |
| Power Supply | DC12V |
| Consumption | LED off: 3W / LED on: 7W |
| Dimension | 210*65*65 |
| Weight | 0.515kg |
